German Hose Clamp

Product Description:

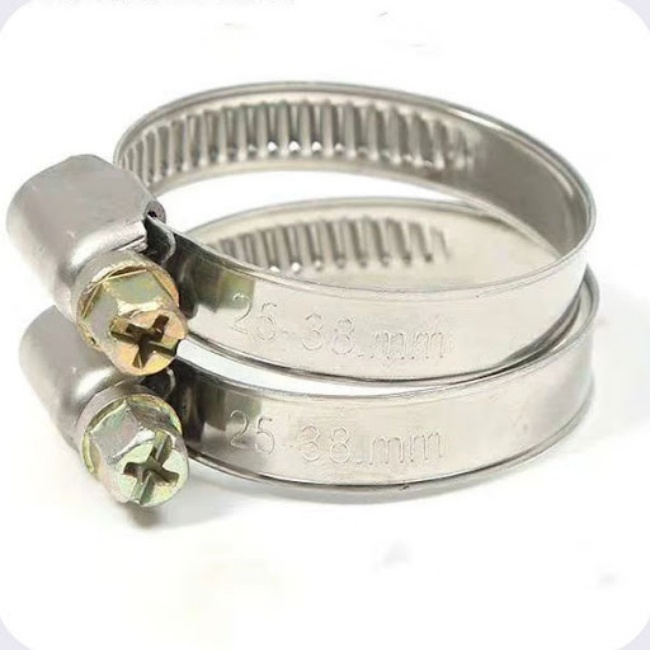

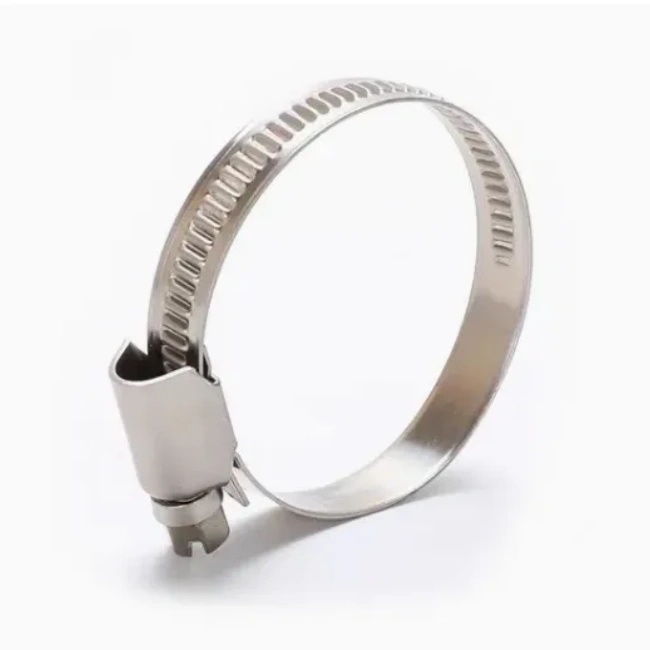

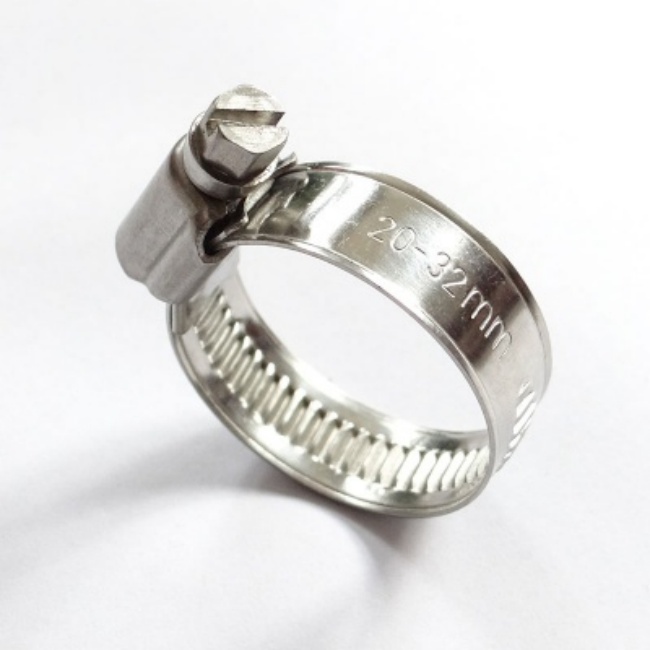

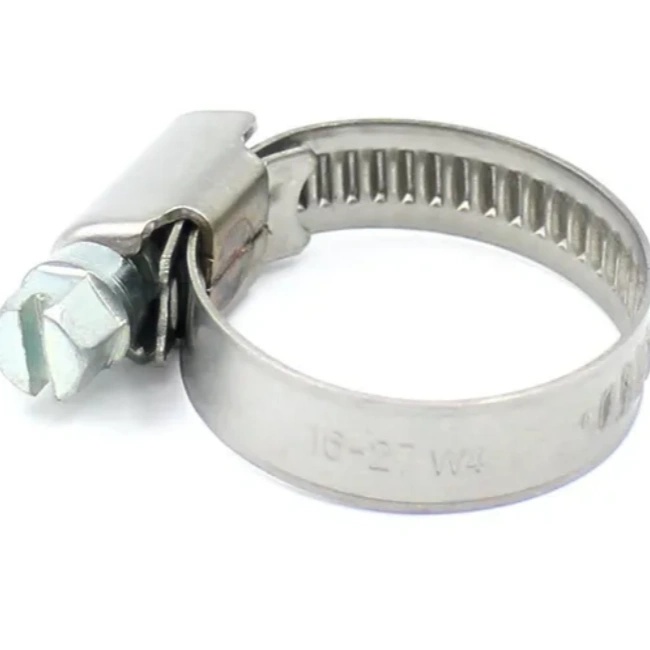

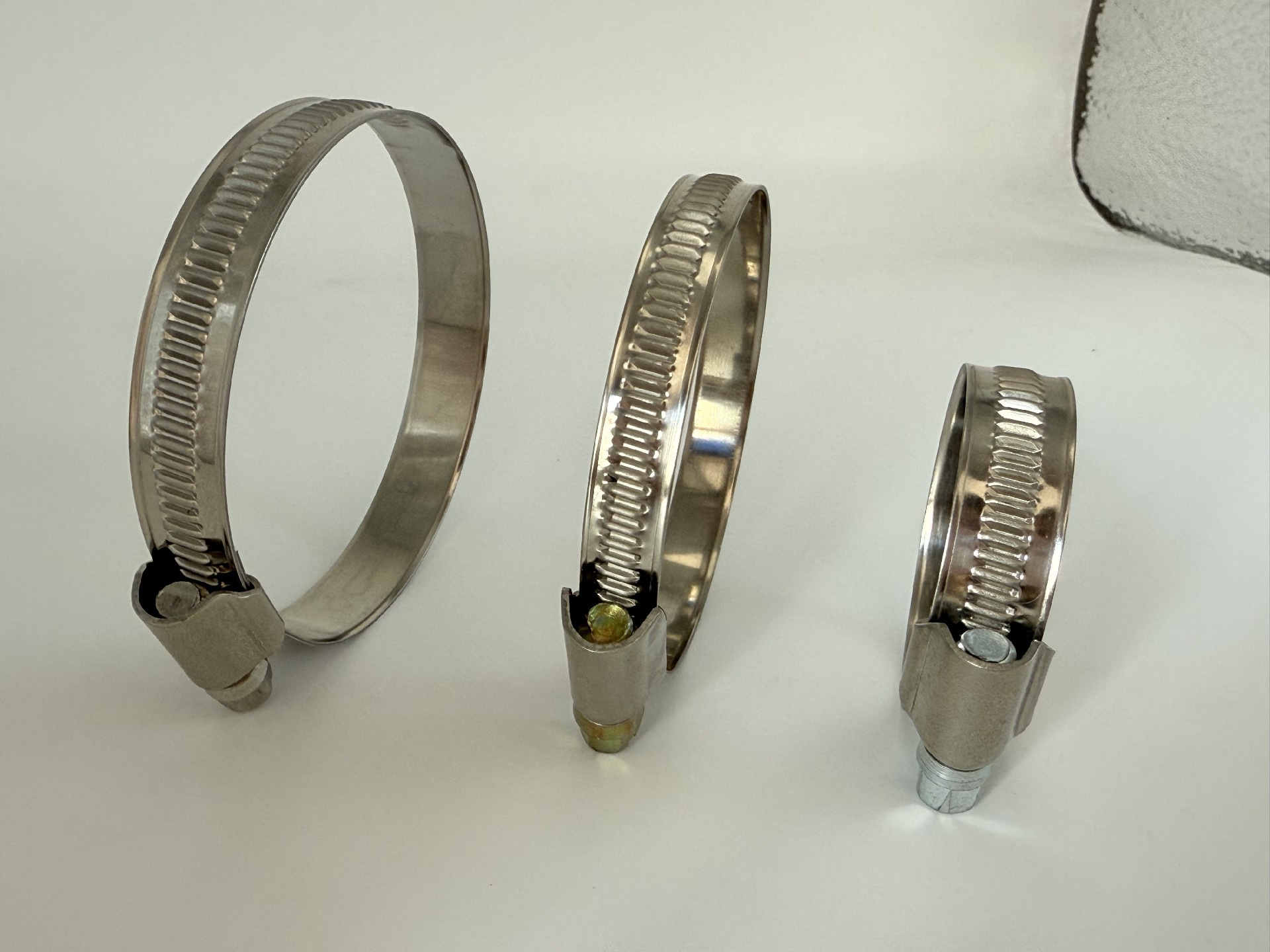

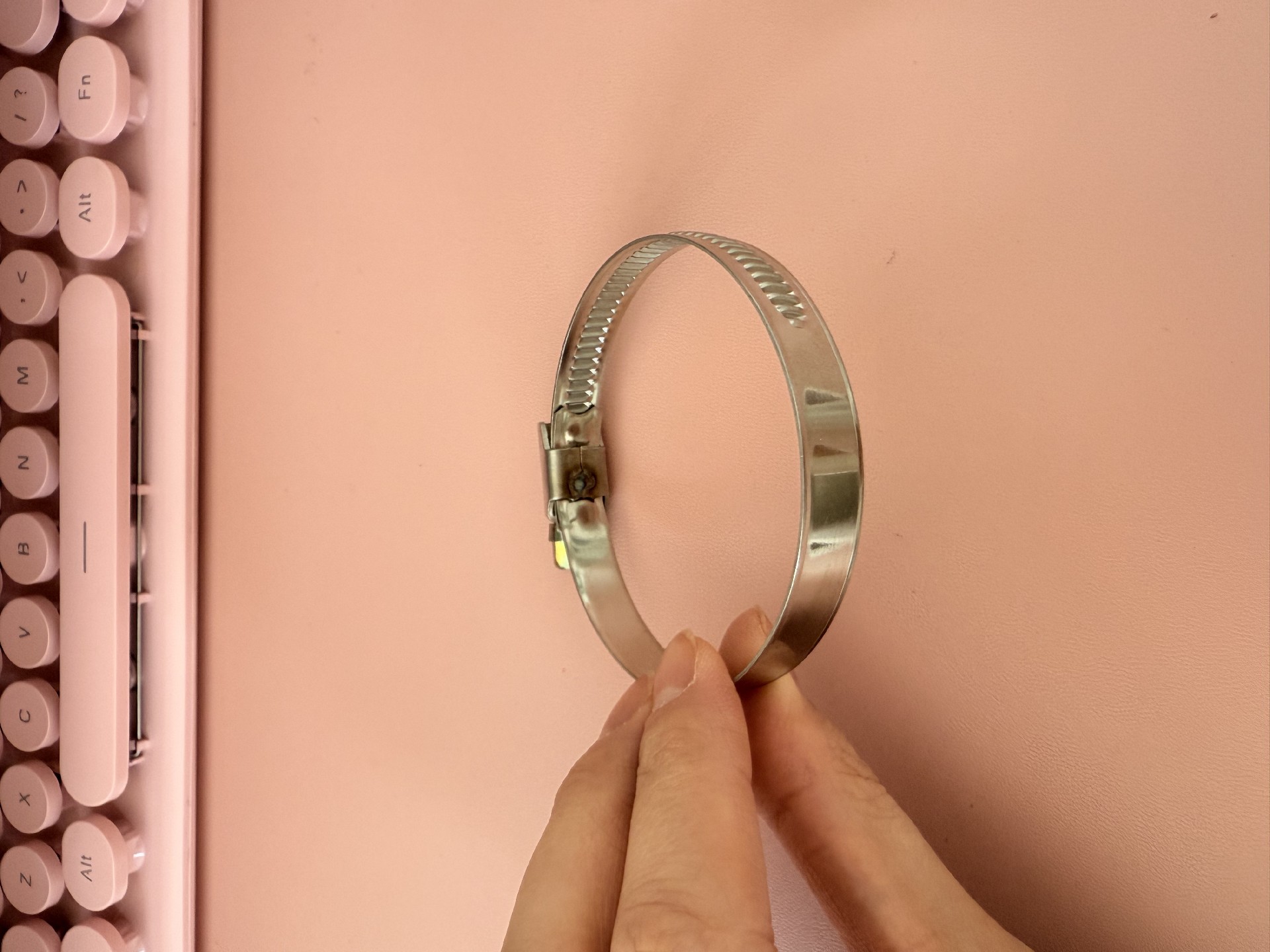

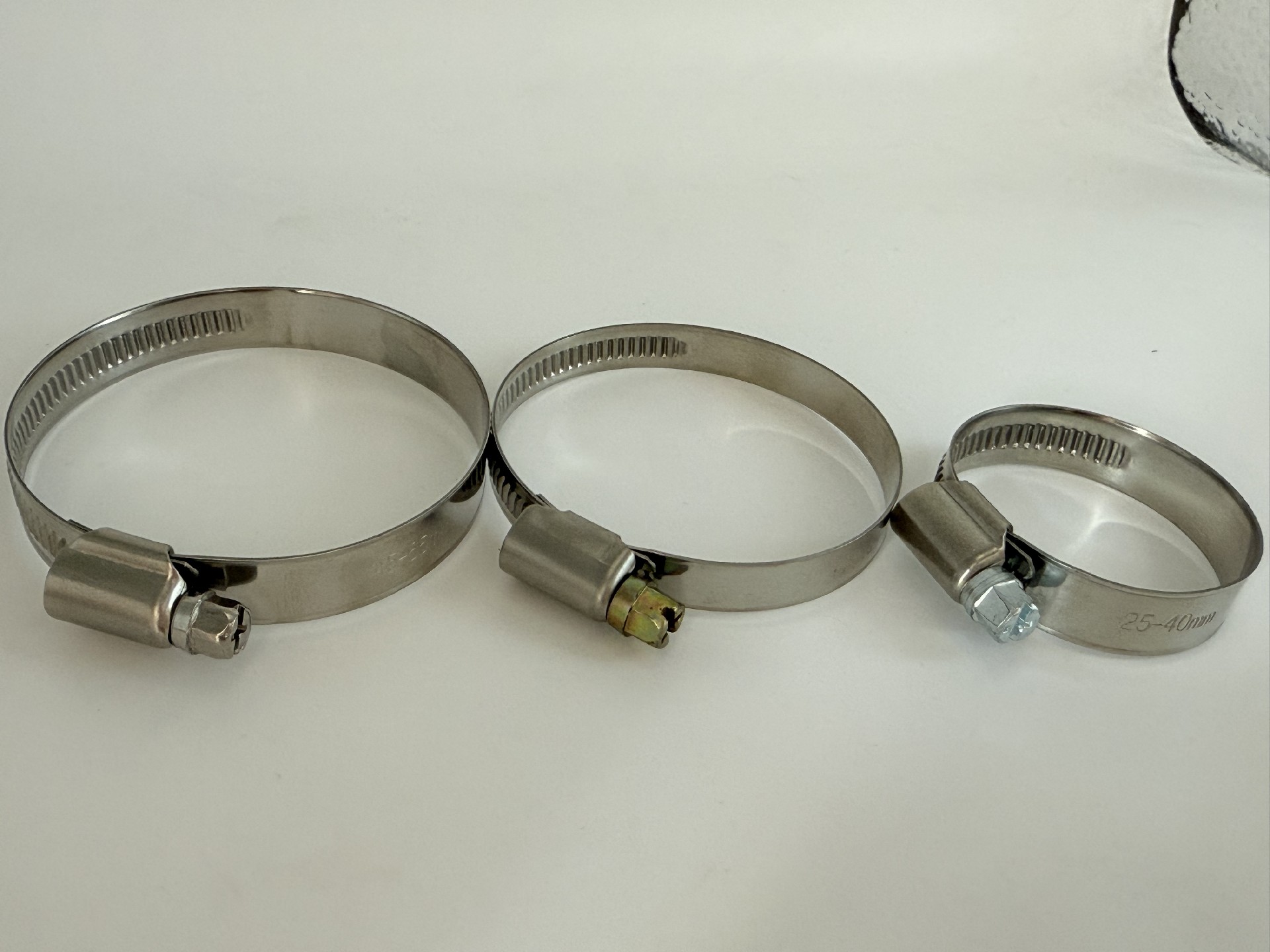

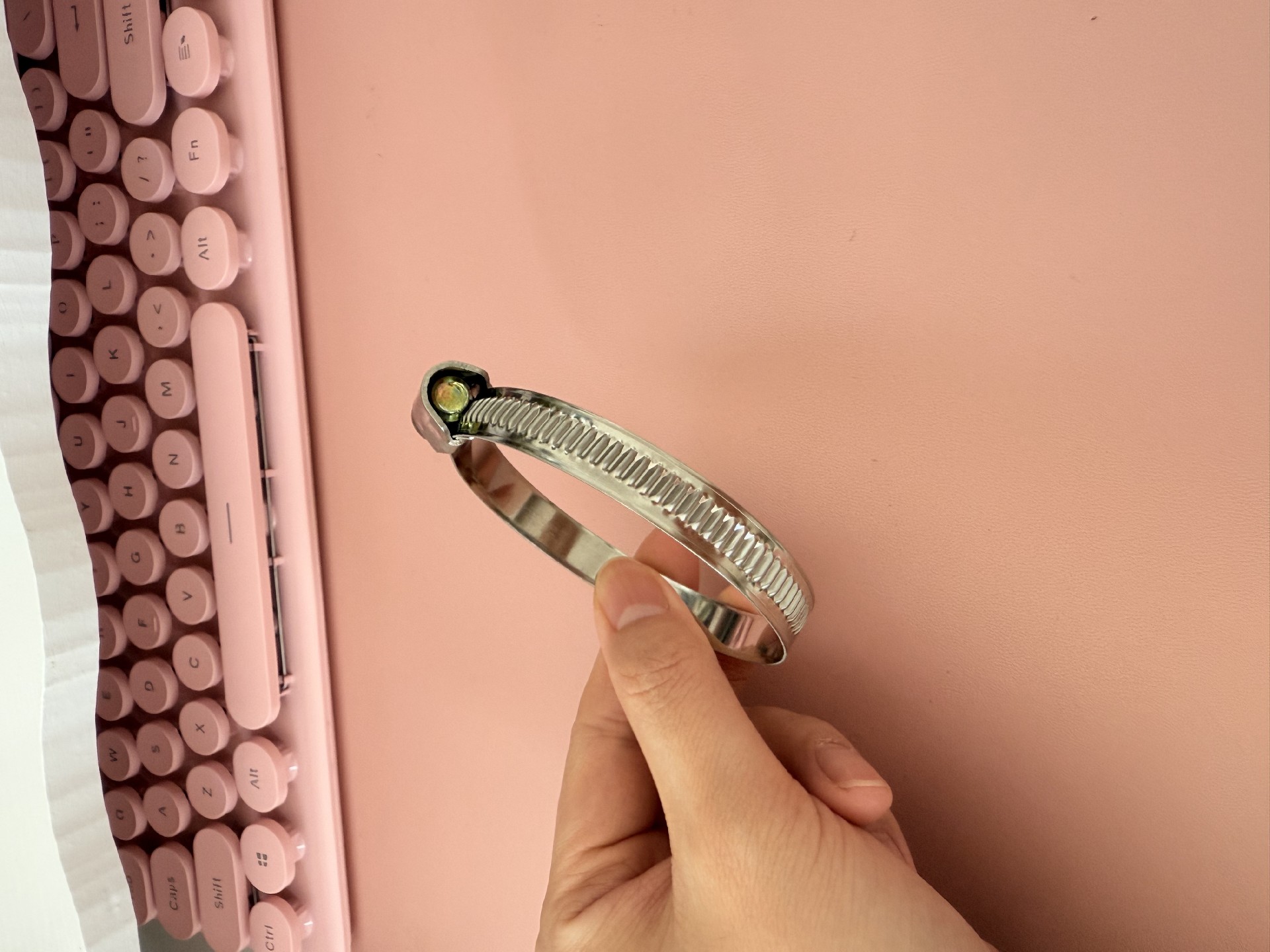

Name: German Type Hose Clamp, also called worm gear clamps or worm drive clamps.
Structure: Band, housing and screw.
Surface treatment: Zinc plated, nickel plated.
Color: Silver, yellow.
Screw shape: Cross, slotted.
Application: Widely used for connecting hoses of automobile pipelines, water pumps, fans, food machinery, chemical machinery and other industries.
Material: W1, W2, W4, W5(See as below)

Material	Band	Housing	Screw	Suggested install torque
W1	Zinc plated steel	Zinc plated steel	Zinc plated steel	3.0Nm
W2	AISI 201SS	AISI 201SS	Zinc plated steel	4.9Nm
W4	AISI 201SS/304SS	AISI 201SS/304SS	AISI 201SS/304SS
W5	AISI 316SS	AISI 316SS	AISI 316SS

Product Parameters:

Size(mm)	Band Width(mm)	Pcs/Bag	Pcs/CTN	Suggested Install Torque
8-12	9	100	1000	4.0Nm
10-16	9	100	1000	4.0Nm
12-22	9/12	100	1000	4.0Nm
16-27	9/12	100	1000	4.0Nm
20-32	9/12	50	1000	4.9Nm
25-40	9/12	50	500	4.9Nm
30-45	9/12	50	500	4.9Nm
35-50	9/12	50	500	4.9Nm
40-60	9/12	50	500	4.9Nm
50-70	9/12	25	500	4.9Nm
60-80	9/12	25	500	4.9Nm
70-90	9/12	25	500	4.9Nm
80-100	9/12	25	250	4.9Nm
90-110	9/12	25	250	4.9Nm
100-120	9/12	10	200	4.9Nm
110-130	9/12	10	200	4.9Nm
120-140	9/12	10	200	4.9Nm
130-150	9/12	10	200	4.9Nm
140-160	9/12	10	200	4.9Nm
Sizes can be adjusted as per enquiry

Application:

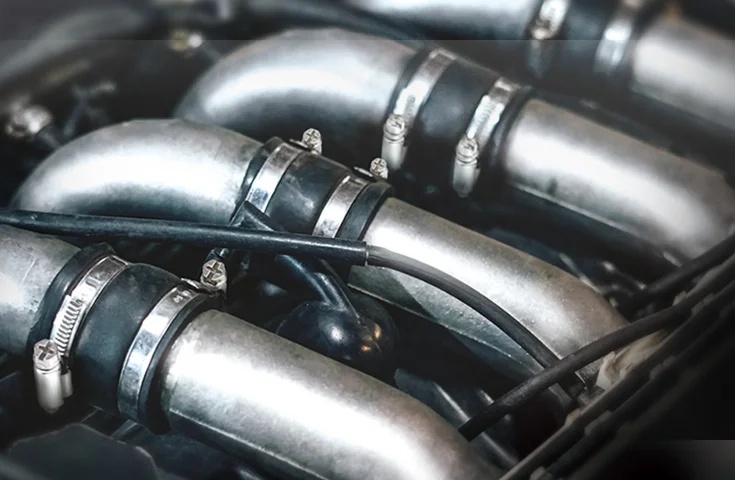

German Type Hose Clamp is widely used in automobiles, tractors, forklifts, locomotives, ships,mines, petroleum, chemicals, pharmaceuticals,agriculture,and other water,oil,steam, dust,etc.The hose clamp is tightly locked,tight and has a wide adjustment range.It is suitable for fasteners with soft and hard pipe connections.
