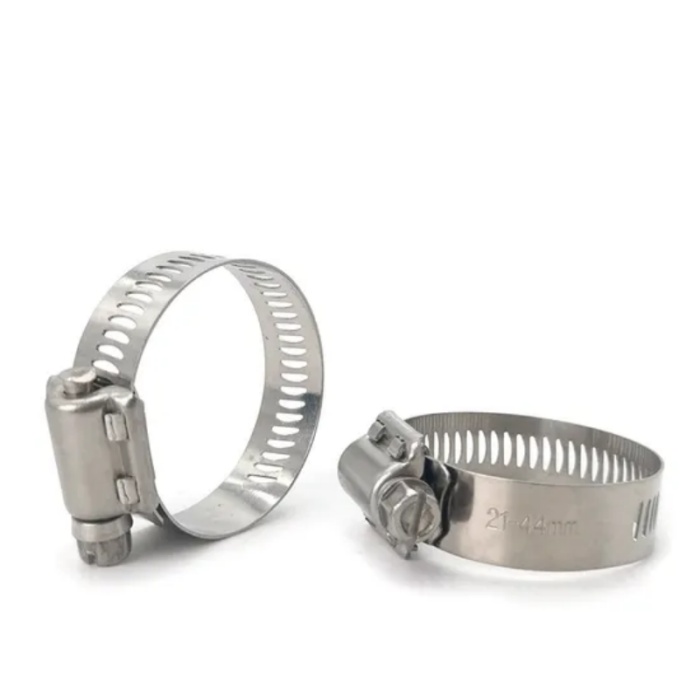

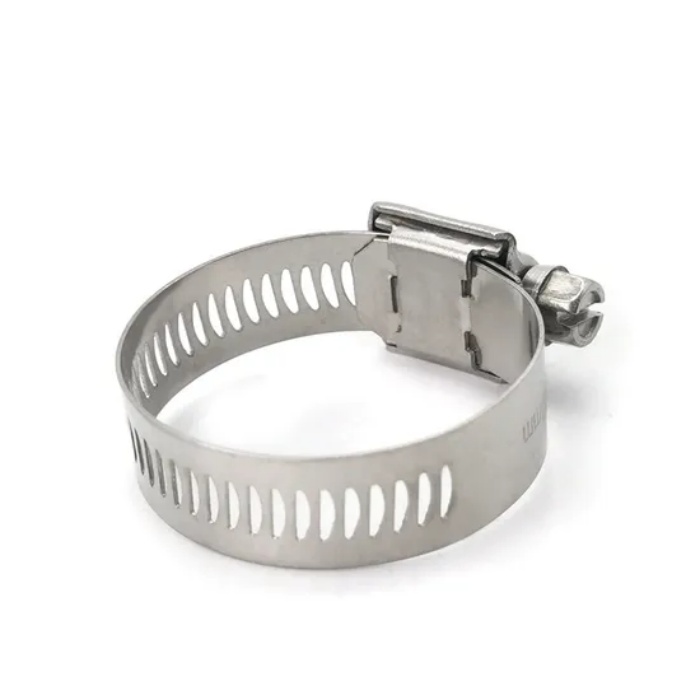

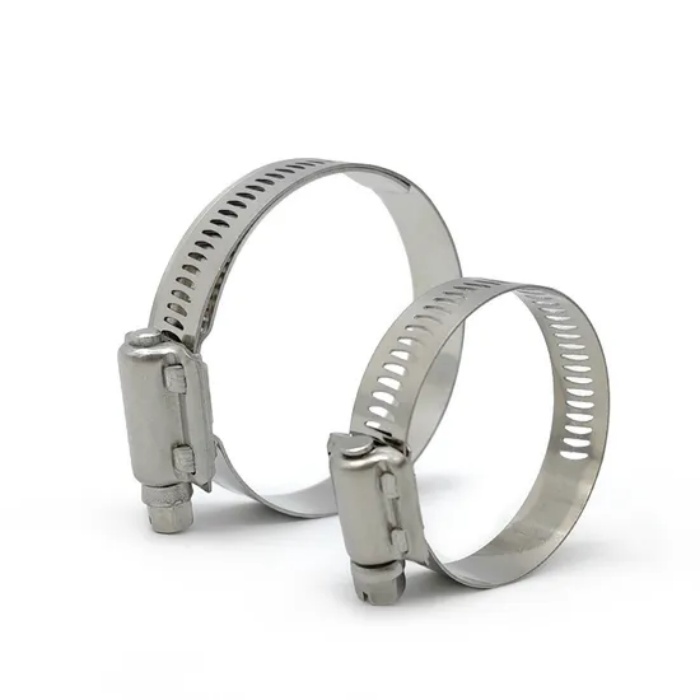

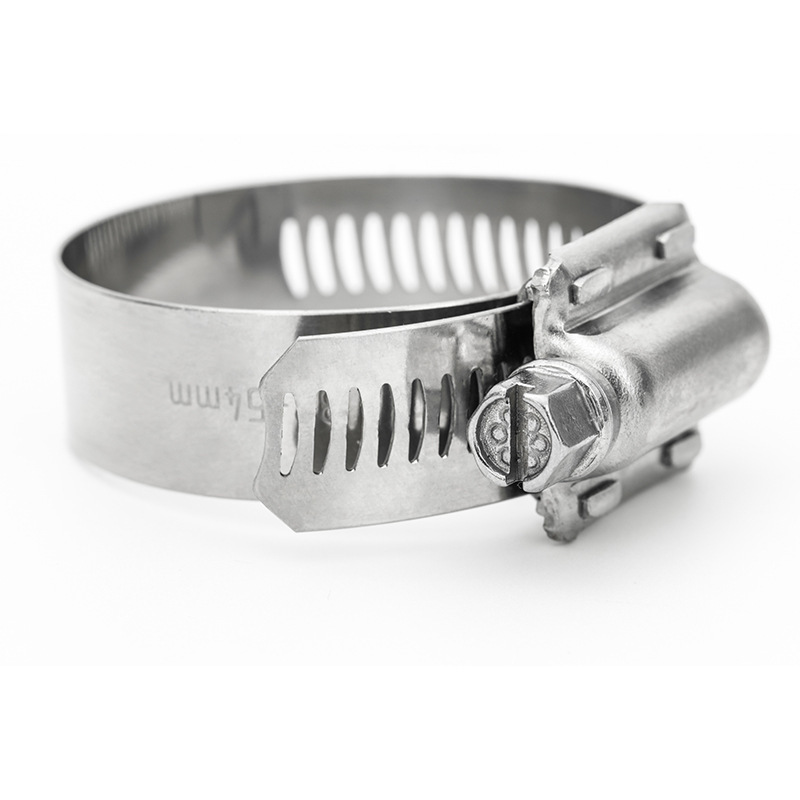

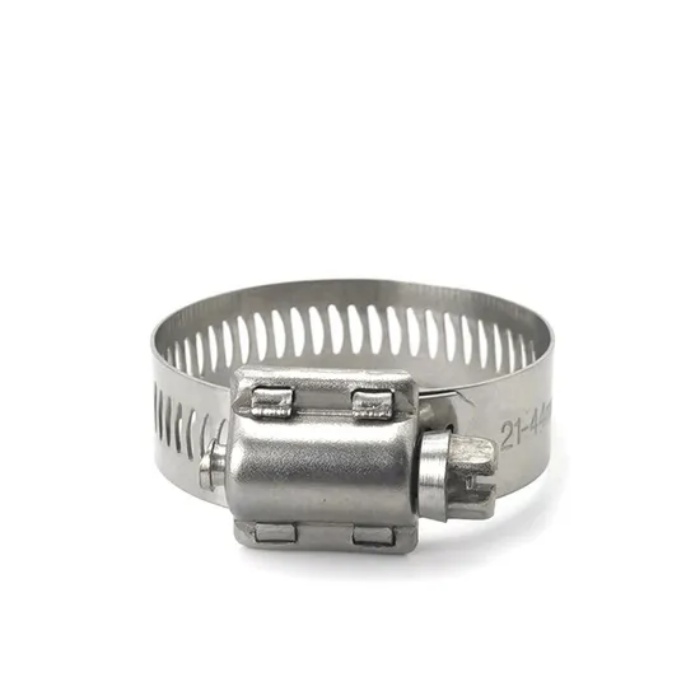

Power-Seal Worm-Drive Stainless Steel 2-PCS Housing Perforated Heavy Duty Hose Clamp for Automotive Systems.

Product Description:

Name: American Type Hose Clamp, also called worm gear clamps or worm drive clamps.
Structure: Band, housing and screw.
Surface treatment: Zinc plated, nickel plated.
Bandwidth*thickness:12.7*0.6mm/14.2*0.6mm/15.8*0.6mm
Screw shape: Cross, slotted.
Application: Widely used for connecting hoses of automobile pipelines, water pumps, fans, food machinery, chemical machinery and other industries.
Material: W1, W2, W4, W5(See as below)

Material	Band	Housing	Screw	Suggested install torque
W1	Zinc plated steel	Zinc plated steel	Zinc plated steel	3.8Nm
W2	AISI 201SS	AISI 201SS	Zinc plated steel	6.0Nm
W4	AISI 201SS/304SS	AISI 201SS/304SS	AISI 201SS/304SS
W5	AISI 316SS	AISI 316SS	AISI 316SS

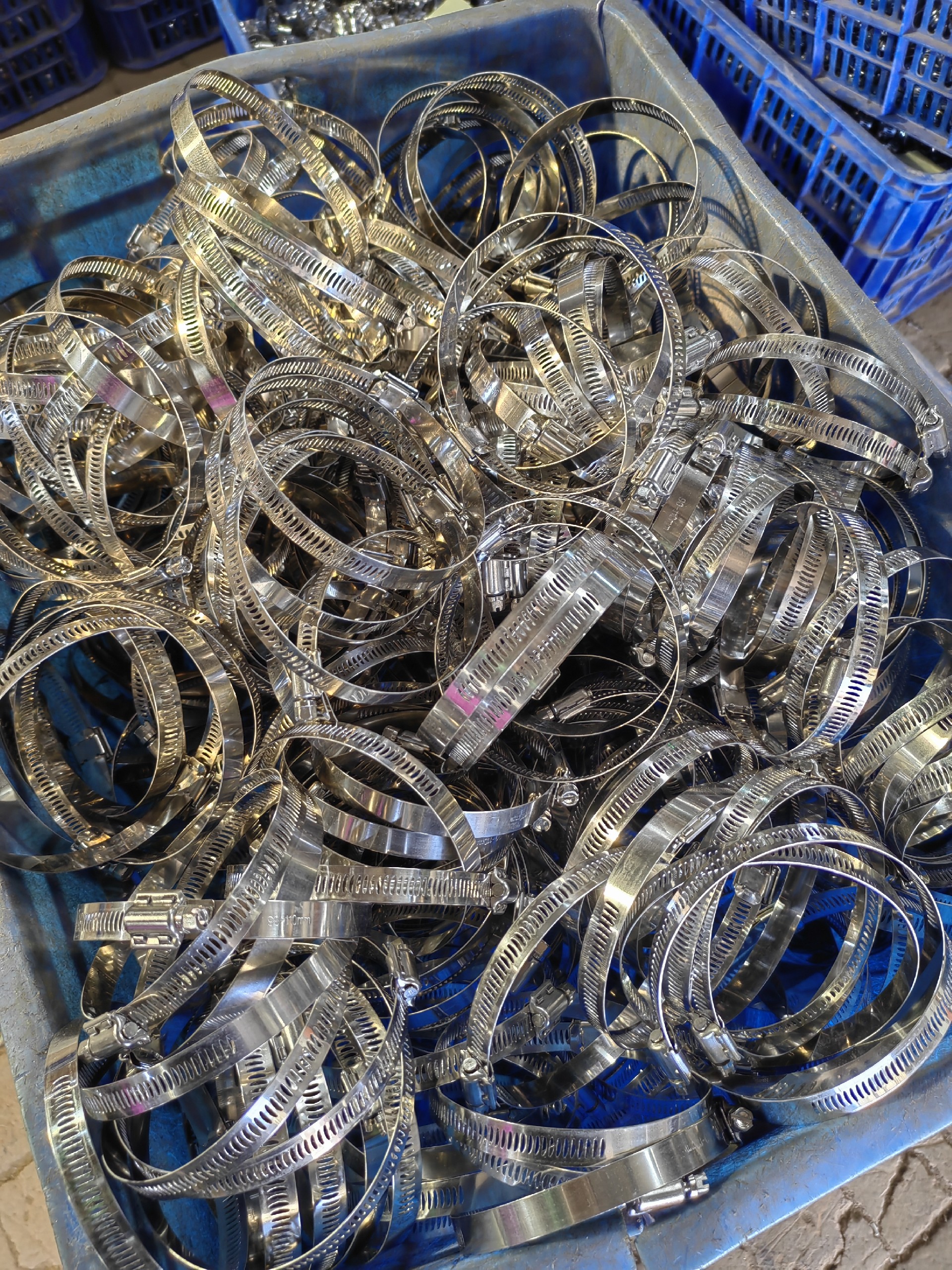

Power-Seal Worm-Drive Stainless Steel 2-PCS Housing Perforated Heavy Duty Hose Clamp for Automotive Systems.

Product Parameters:

Size(mm)	Band Width(mm)	Pcs/Bag	Pcs/CTN
10-16	12.7	100	1000
13-19		100	1000
16-25		100	1000
19-29		100	1000
22-32	14.2	50	500
25-38		50	500
32-44		50	500
32-51		50	500
44-64		50	500
22-32	15.8	25	250
25-38		25	250
32-44		10	200
32-51		10	200
44-64		10	200
Sizes can be adjusted as per enquiry

Application:

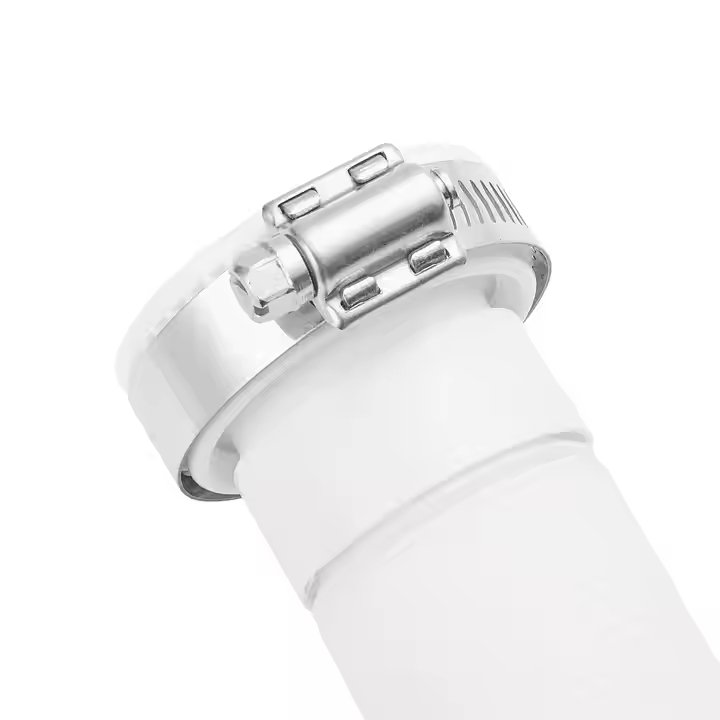

American Type Worm Drive Hose Clamp are the traditional hose clamp design that is most popular in the Americas. which have a crimped or interlocked construction so clamps are not welded.it is designed to attach and seal a hose onto a fitting, inlet/outlet, and more when harsh environmental conditions may adversely affect the clamping application and used where corrosion, vibration, weathering, radiation, and temperature extremes are a concern
