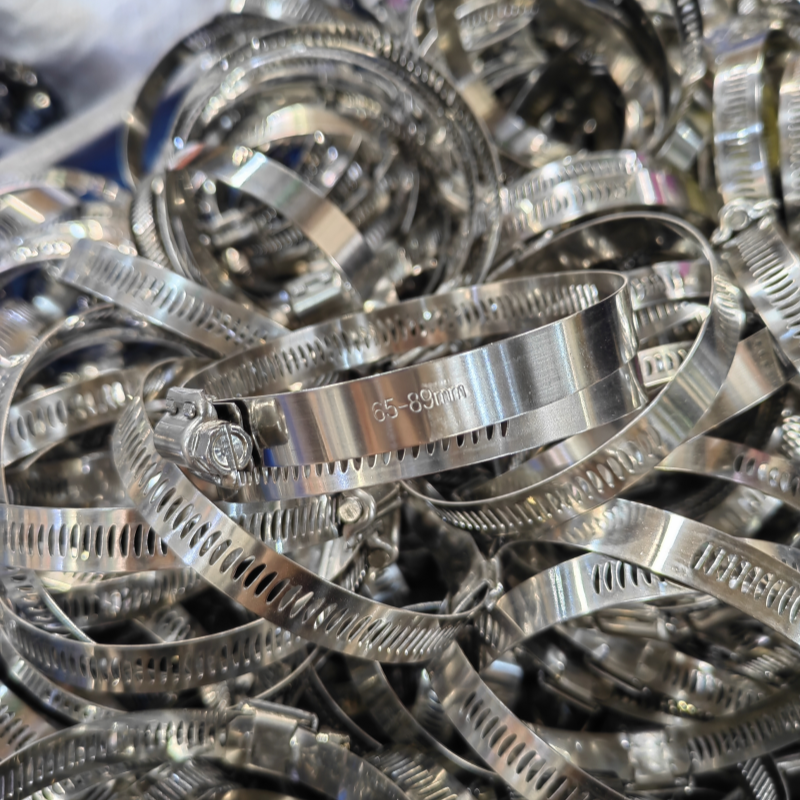

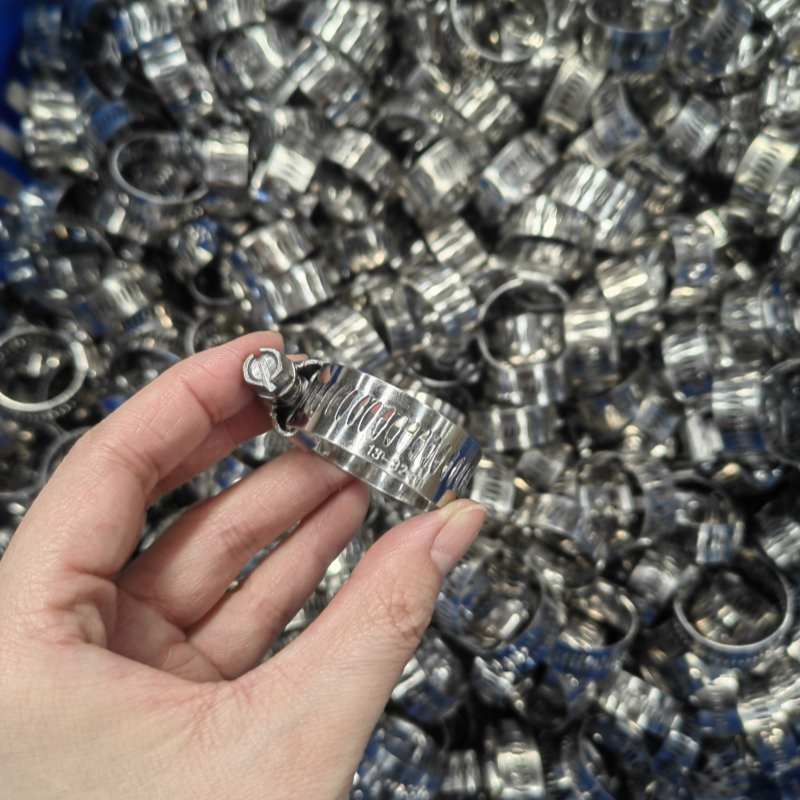

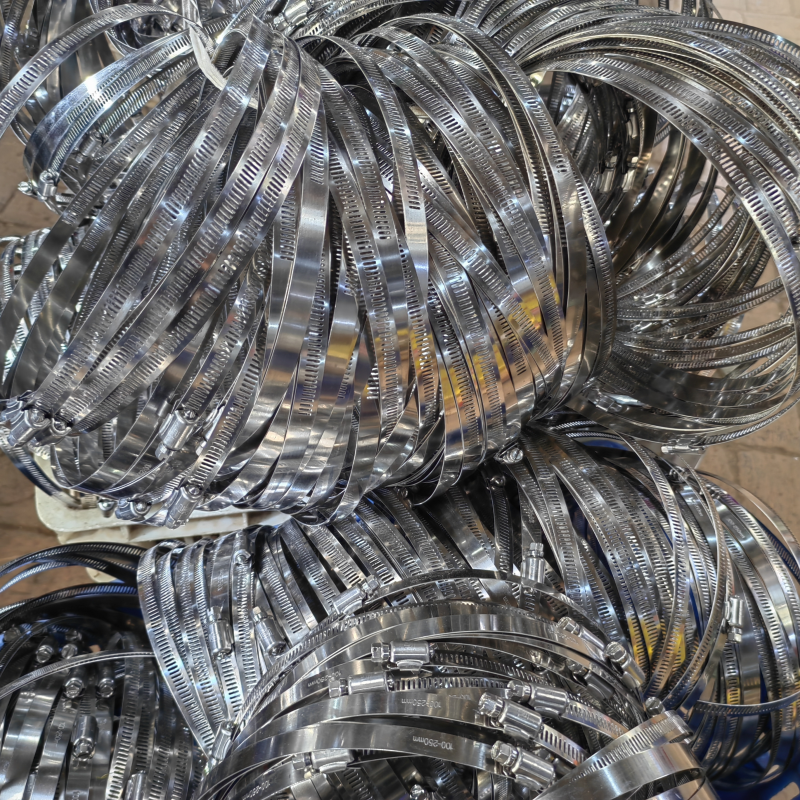

American Hose Clamp

Product Description:

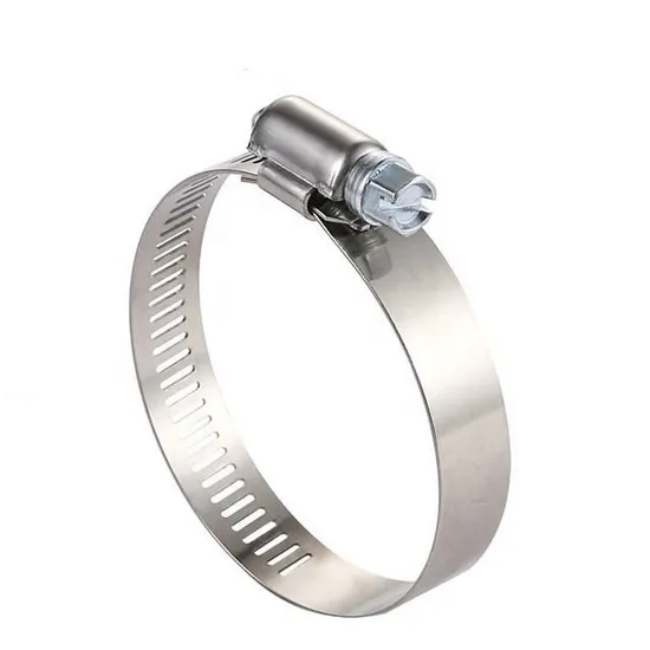

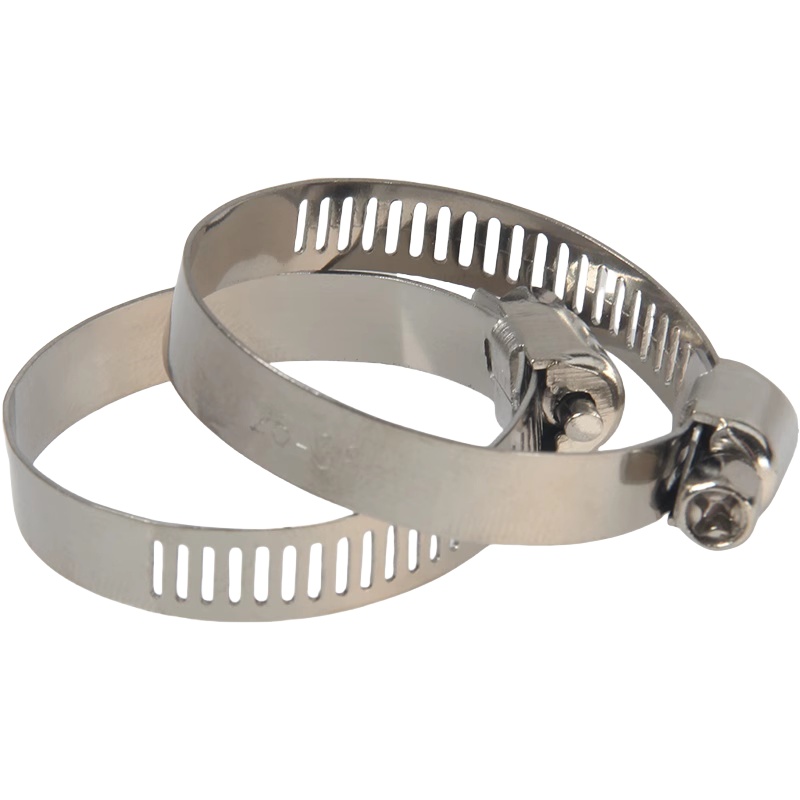

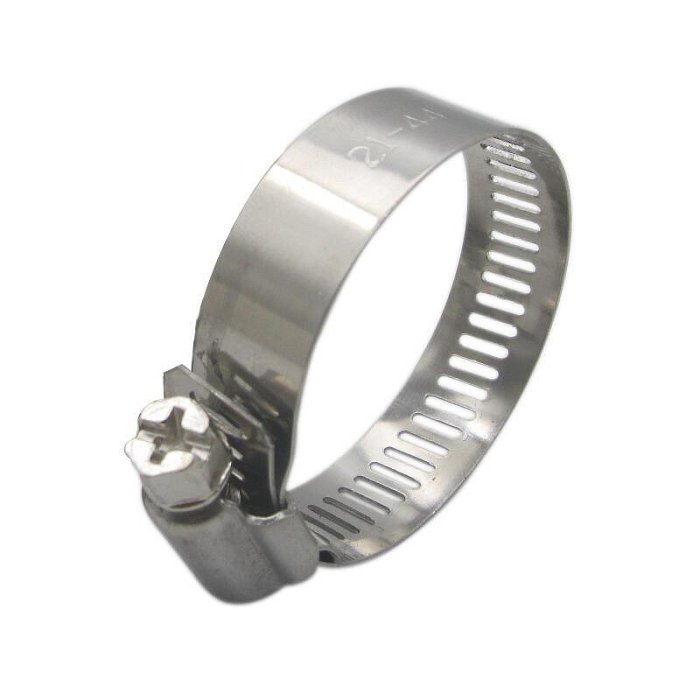

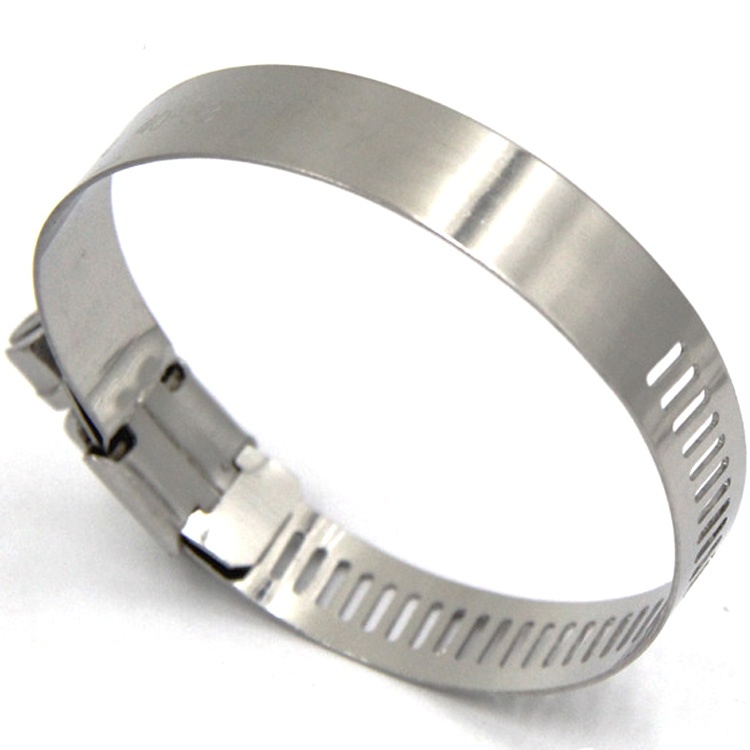

Name: American Type Hose Clamp, also called worm gear clamps or worm drive clamps.
Structure: Band, housing and screw.
Surface treatment: Zinc plated, nickel plated.
Color: Silver, yellow.
Screw shape: Cross, slotted.

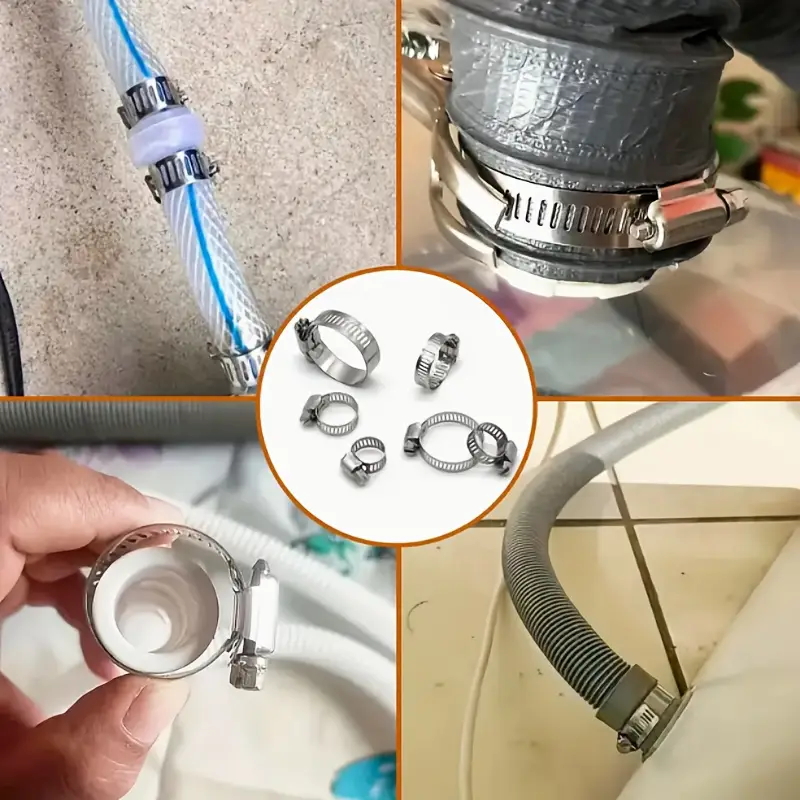

Application: Widely used for connecting hoses of automobile pipelines, water pumps, fans, food machinery, chemical machinery and other industries.
Material: W1, W2, W4, W5(See as below)

Material	Band	Housing	Screw	Suggested install torque
W1	Zinc plated steel	Zinc plated steel	Zinc plated steel	3.8Nm
W2	AISI 201SS	AISI 201SS	Zinc plated steel	6.0Nm
W4	AISI 201SS/304SS	AISI 201SS/304SS	AISI 201SS/304SS
W5	AISI 316SS	AISI 316SS	AISI 316SS

Product Parameters:

Size(mm)	Band Width(mm)	Pcs/Bag	Pcs/CTN	Suggested Install Torque
11-20	12.7	100	1000	6.0Nm
13-23	12.7	100	1000	6.0Nm
14-27	12.7	100	1000	6.0Nm
17-32	12.7	100	1000	6.0Nm
19-38	12.7	50	1000	6.0Nm
21-44	12.7	50	500	6.0Nm
27-51	12.7	50	500	6.0Nm
38-57	12.7	50	500	6.0Nm
44-64	12.7	50	500	6.0Nm
51-70	12.7	25	500	6.0Nm
52-76	12.7	25	500	6.0Nm
59-83	12.7	25	500	6.0Nm
65-89	12.7	25	250	6.0Nm
71-95	12.7	25	250	6.0Nm
78-102	12.7	10	200	6.0Nm
84-108	12.7	10	200	6.0Nm
90-114	12.7	10	200	6.0Nm
103-127	12.7	10	200	6.0Nm
117-140	12.7	10	200	6.0Nm
130-152	12.7	10	200	6.0Nm
141-165	12.7	10	200	6.0Nm
157-178	12.7	10	200	6.0Nm
Sizes can be adjusted as per enquiry

Application:

American Type Worm Drive Hose Clamp are the traditional hose clamp design that is most popular in the Americas. which have a crimped or interlocked construction so clamps are not welded.it is designed to attach and seal a hose onto a fitting, inlet/outlet, and more when harsh environmental conditions may adversely affect the clamping application and used where corrosion, vibration, weathering, radiation, and temperature extremes are a concern
