T Bolt Clamps with Spring

Product Description:

Product Name：T Bolt with spring Hose Clamp
Surface treatment：Polishing
Screw shape：8.8 grade
Package：Inner bag or plastic box then in carton and palletized
Material：W2, W4

Product Parameters:

Size(mm)	Bandwidth(mm)	Pcs/Bag	Pcs/CTN	Suggested Install Torque
35-40	19*0.6	10	300	10Nm
38-43	19*0.6	10	300	10Nm
41-46	19*0.6	10	300	10Nm
44-51	19*0.6	10	300	10Nm
48-56	19*0.6	10	200	10Nm
51-59	19*0.6	10	200	10Nm
54-62	19*0.6	10	200	10Nm
Sizes can be adjusted as per enquiry

Application:

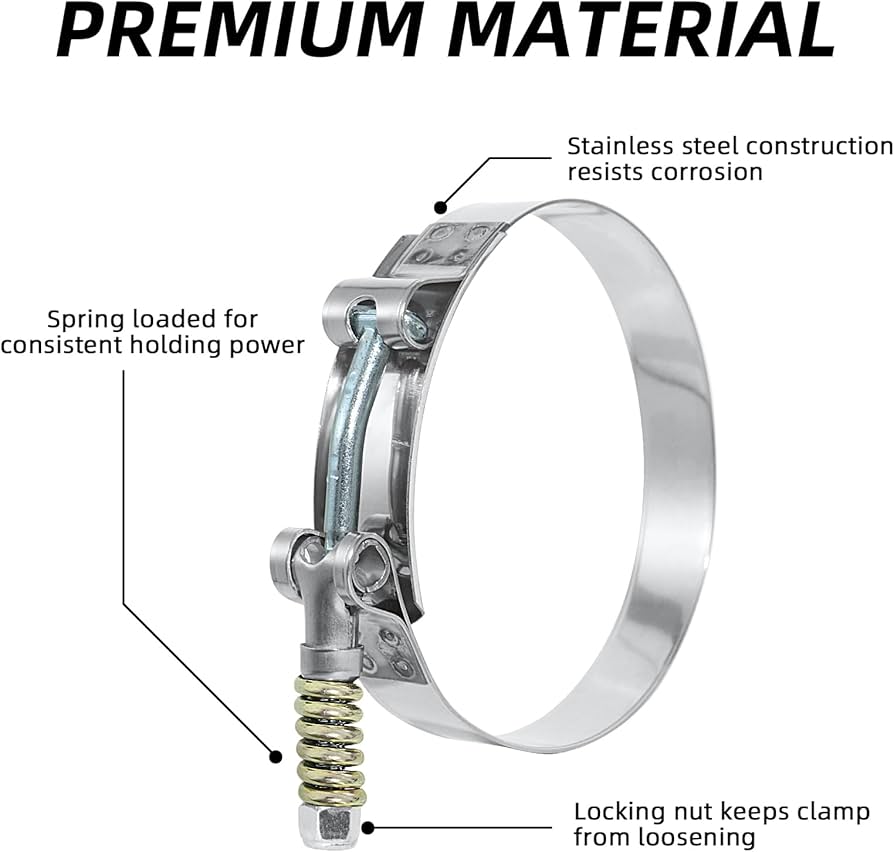

The T-type spring hose clamp is a self-tightening fastening solution featuring a unique T-shaped design that provides consistent radial pressure for secure hose connections. Its spring-loaded mechanism automatically compensates for hose shrinkage and vibration, ensuring leak-proof performance in dynamic environments. Made from high-grade stainless steel (typically 304 or 316), it offers excellent corrosion resistance and durability. The clamp's one-piece construction eliminates loose parts while allowing quick installation without tools.

Key applications include:

Automotive systems (coolant hoses, turbocharger connections, fuel lines)
Industrial equipment (hydraulic systems, compressed air lines)
Marine applications (engine cooling systems)
Agricultural machinery (irrigation systems)
HVAC systems (refrigerant lines)
